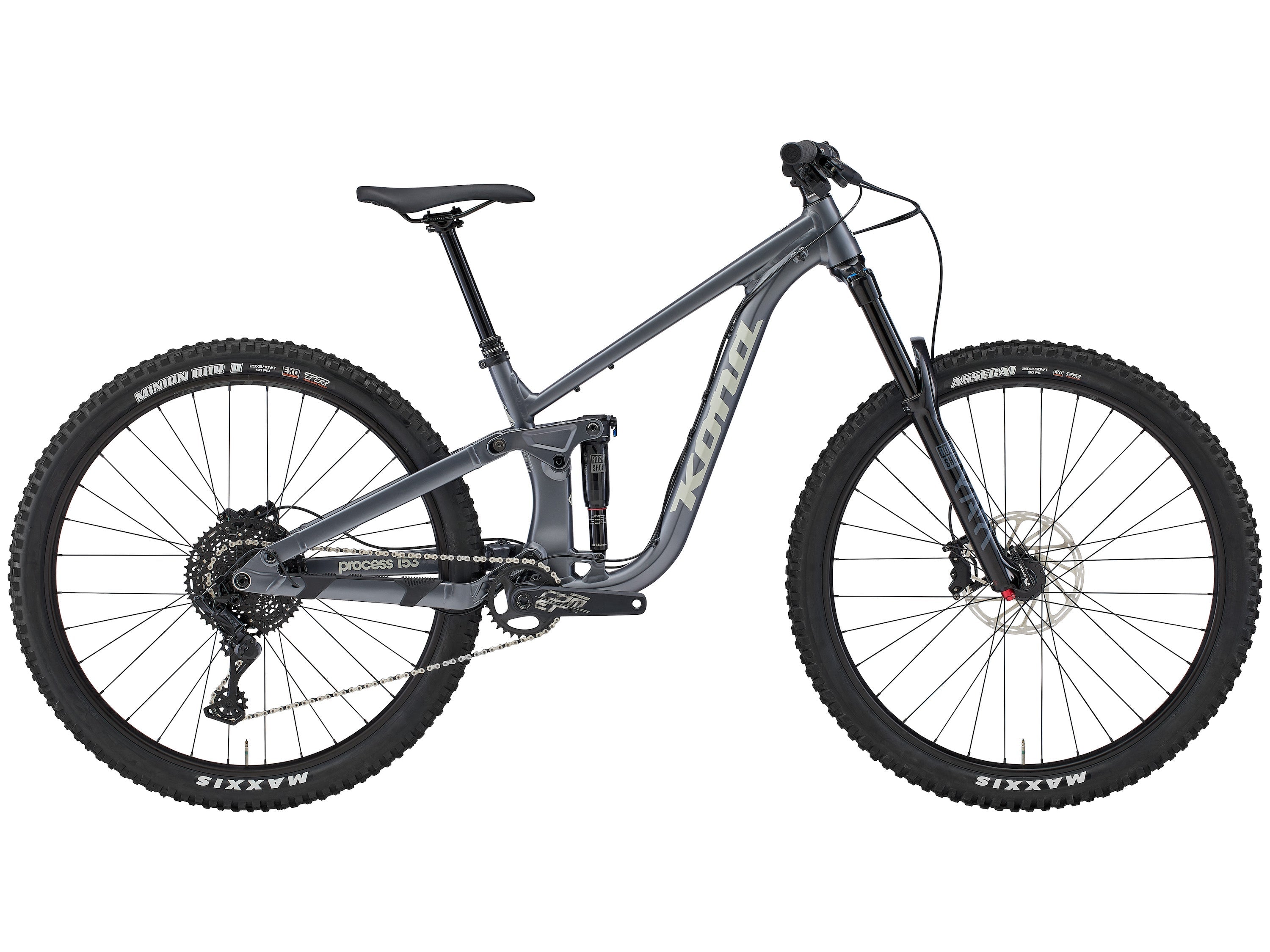

Kona Process 153 G3 29er Mountain Bike

About this bike

Your weekends never saw this coming. The base 153 is like a best friend and trusty pickup truck rolled into one – a rugged aluminum shred machine built to slay every adventure you put in front of it and still leave room in your life for things like food and rent.
It runs the same telepathically awesome geometry as all the other Process 153 models but utilizes carefully thought out components that get the job done without any bragging and without breaking the bank. Fully featured like its big siblings with flip-chip mullet compatibility the 153 is your ticket to ride. Entry level? More like gateway drug…
SPECIFICATIONS




Frame Material
Kona 6061 Aluminum Butted 153mm Travel


Sizes
S M L XL


Rear Shock
RockShox Deluxe Select Plus Trunnion


Fork
RockShox Yari RC Motion Control DebonAir 160mm Tapered 110mm Spacing


Crankarms
FSA Comet Heavy Duty


Chainrings
30t


B/B
FSA PF92


Pedals
n/a


Chain
KMC X10


Cassette
Microshift Advent X 11-48t 10spd


Chainguide
n/a


F/D
n/a


R/D
Microshift Advent X


Shifters
Microshift Advent X


Brake Calipers
SRAM DB8


Front Brake Rotor
SRAM Centerline 200mm


Rear Brake Rotor
SRAM Centerline 180mm


Brake Levers
SRAM DB8


Headset
FSA No.57B


Handlebar
Kona XC/BC 35


Stem
Kona XC/BC 35


Seatpost
TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm


Seat Clamp
Kona Clamp


Grips
Kona Key Grip


Saddle
Kona Trail


Front Hub
Formula 110x15mm


Rear Hub
Formula 148x12mm


Spokes
Stainless Black 14g


Rims
WTB ST i30 TCS 2.0


Front Tire
Maxxis Assegai EXO TR DUAL 29x2.5' WT


Rear Tire
Maxxis Minion DHR II EXO TR DUAL 29x2.4' WT (27.5x2.4' WT size S)


Paint Color
Satin Metallic Charcoal w/ Concrete Decals


Extras

n/a





GEOMETRY






Size
S
M
L
XL


1
ST Length
380
380
420
450


2
TT Length
576
601
628
667


3
Reach
430
455
480
515


4
Stack
620
620
625
635


5
Standover
700
700
710
720


6
HT Angle
64.5
64.5
64.5
64.5


7
HT Length
100
100
105
116


8
ST Angle
76.9
76.9
76.7
76.6


9
CS Length
435
435
435
435


10
BB Drop
20
30
30
30


11
BB Height
345
345
345
345


12
Wheelbase
1190
1215
1244
1284


13
Front Center
756
781
811
851


14
Fork Length
571
571
571
571


15
Fork Offset
44
44
44
44
